Truck craneModelHost hook rated load capacity(t)Weight (kg)Maximum lifting torque (KN.M)Boom length (Full -extended)(m)
Recommendation CLLT1020/2202670083831.7
CLLT1025/4 252951598034.5
CLLT1025/5253258098040
CLTTC025G253307098040
CLLT1036/13637000123639.75
CLLT1055/25542200176441
CLLT1070/170457002354.444.1
CLTTC100G10054990329348.2
CLLT113013068500382249
    1. CLLT1020/2 Truck CraneThe rated lifting capacity is measured after the truck stops on the solid ground and the crane is level regulated.
      The luffing range is measured under the condition of rated load. The values above the bold line are determined by the mechanical strength of crane, the values below the bold line are determined by the stability of whole machine. When measure the load capacity of the ...
    1. CLLT1025/4 Truck CraneThe rated lifting capacity includes the weight of host lifting hook of 300kg and the auxiliary lifting hook of 70kg.
      When the auxiliary boom is fully extended, the actual lifting capacity of the host lifting boom should be 400kg lower than the rated value.
      When the host lifting hook is at the end of host boom arm, the actual lifting capacity...
    1. CLLT1025/5 Truck CranePlease make sure the boom length in the list you refer to is longer than your actual boom length, and arrange the lifting task no heavier than the smallest rate lifting capacity suggested by the list for the sake of safety.
      At the end of the table are the minimum luffing angles under different boom lengths. It will be risky to lower the boom down below these minimum luffing angles.
    1. CLTTC025G Truck CraneWhen we determine the load capacity of the 10.5m long boom, we make sure all the expansion boom sections had been retracted.
      The parameters of rated lifting capacity in list include the weight of host lifting hook of 300kg and the auxiliary lifting hook of 70kg.
      When the auxiliary boom is fully extended, the actual lifting capacity ...

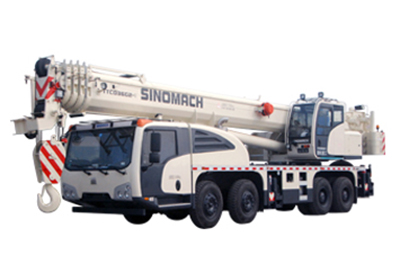

    1. CLLT1036/1 Truck Crane If the host lifting hook is at the end of host boom arm, the actual lifting capacity of auxiliary boom should be 400kg lower than the rated value, and actual lifting capacity of every boom section supported by the boom-end single pulley should be 400kg lower than the rated value and limited within 3000kg.
      When the auxiliary lifting hook is on the boom-end single pulley, the actual lifting capacity ...

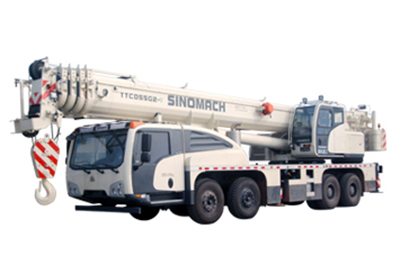

    1. CLLT1055/2 Truck CraneUnder the condition of not using the fifth supporting leg, the truck crane is forbidden to lift any weight within the 120° sector in front of itself. Only after the fifth supporting leg is mounted can the equipment finish the lifting task 360° all around itself.
      Please make sure the boom length in the list you refer to is longer than your actual boom length, and arrange the lifting task no heavier than the smallest rate lifting capacity ...

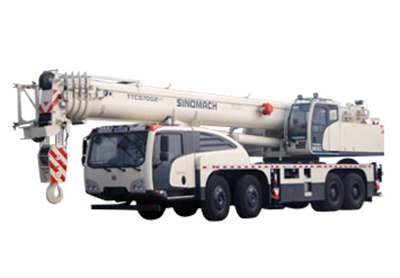

    1. CLLT1070/1 Truck CranePlease make sure the boom length in the list you refer to is longer than your actual boom length, and arrange the lifting task no heavier than the smallest rate lifting capacity suggested by the list for the sake of safety.
      At the end of the table are the minimum luffing angles under different boom lengths. It will be risky to lower the boom down below these minimum luffing angles.
    1. CLTTC100G Truck CraneUnder the condition of not using the fifth supporting leg, the truck crane is forbidden to lift any weight within the 120° sector in front of itself. Only after the fifth supporting leg is mounted can the equipment finish the lifting task 360° all around itself.
      Please make sure the boom length in the list you refer to is longer than your actual boom length, and arrange the lifting task no heavier than the smallest rate lifting capacity suggested...
    1. CLLT1130 Truck CraneIf the host lifting hook is at the end of host boom arm, the actual lifting capacity of auxiliary boom should be 1250kg lower than the rated value, and actual lifting capacity of every boom section supported by the boom-end single pulley should be 2800kg lower than the rated value and limited within 6000kg.
      When the auxiliary lifting hook is on the boom-end single pulley, the actual lifting capacity ...
